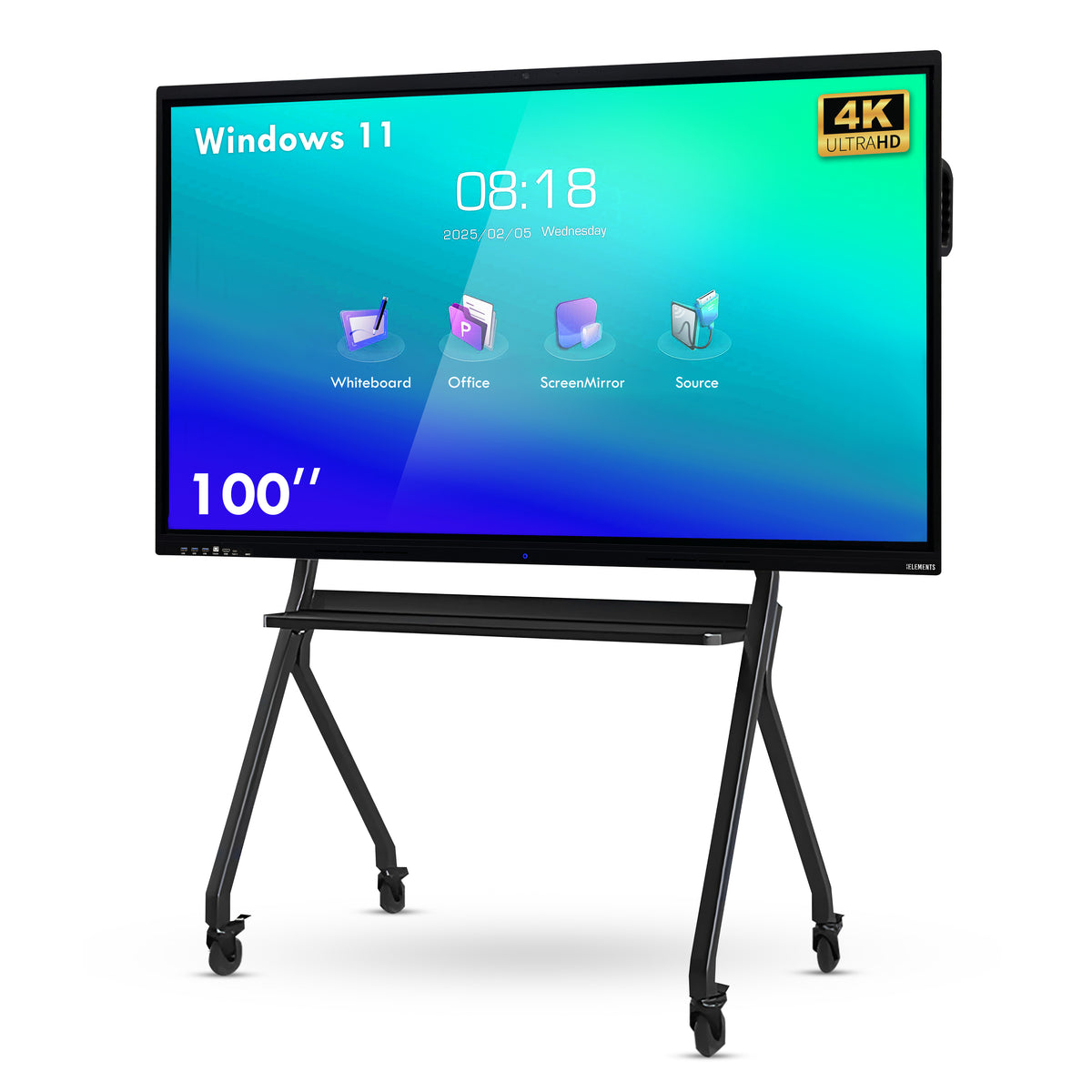

KB ELEMENTS 100" LED UHD 4K Interactive Flat Panel – Android 14, 40+ Point Touch & Fingerprint Recognition (ELT100P14DE)

Elevate large-scale collaboration with the KB ELEMENTS 100" LED UHD 4K Interactive Flat Panel (ELT100P14DE). Featuring an expansive 100" IPS D-LED 4K UHD display, advanced 40+ point infrared touch technology, full-bonded anti-glare tempered glass, and a powerful Android 14 platform, this professional interactive display delivers exceptional visual clarity, responsive writing, and seamless collaboration. Backed by a 3-Year Full Warranty, it is designed for reliable long-term use in educational, corporate, and professional environments.

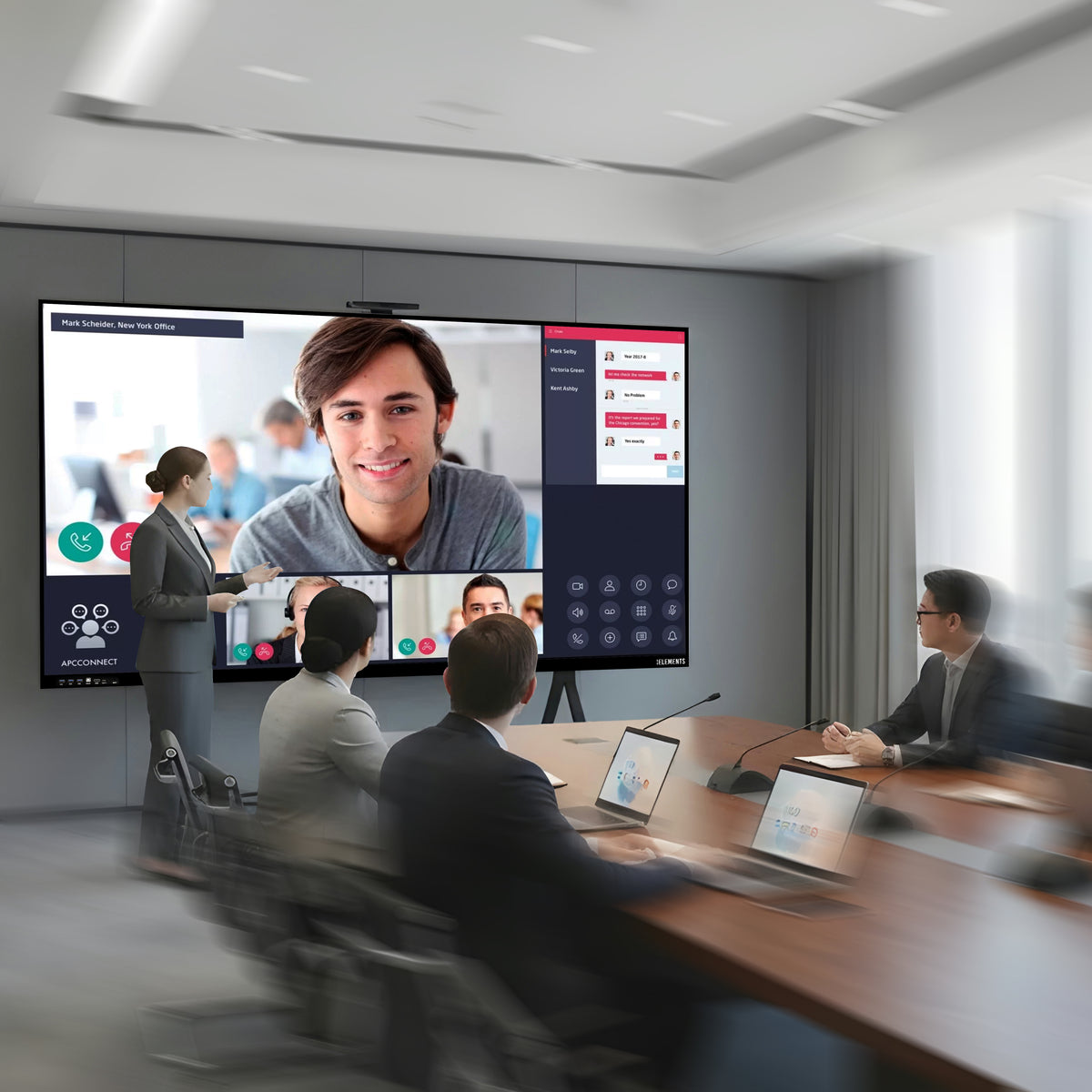

Powered by a V100 Octa-Core Cortex-A55 processor with 8GB RAM and 128GB storage, the ELT100P14DE provides smooth performance for digital whiteboarding, presentations, multimedia playback, screen sharing, and everyday collaboration. An integrated 48MP AI camera, 8-array beamforming microphone system, and 2 × 15W stereo speakers create a complete all-in-one solution for video conferencing, distance learning, and hybrid communication.

Perfect for large classrooms, universities, lecture halls, boardrooms, conference rooms, training centers, and collaborative workspaces, the ELT100P14DE also features a front-mounted fingerprint recognition module for fast and secure authentication, along with optional OPS computer module support for a full Windows operating environment.

Key Features

• 100" UHD 4K IPS Display – 3840 × 2160 resolution with D-LED backlighting for exceptional large-format visual clarity
• 350 cd/m² Brightness – Clear visibility for classrooms, lecture halls, meeting rooms, and professional environments
• 178° Wide Viewing Angle – Consistent image quality from different viewing positions
• 7H Full-Bonded Anti-Glare Tempered Glass – Durable screen protection with reduced reflections and enhanced touch accuracy
• 40+ Point Infrared Multi-Touch – High-precision interaction with ≤8ms response time and ±1mm accuracy
• Android 14 – Powerful V100 Octa-Core platform with 8GB RAM and 128GB storage
• Integrated Fingerprint Recognition – Front-mounted one-touch fingerprint authentication for secure access
• 48MP AI Camera – Integrated 120° ultra-wide camera with light compensation
• 8-Array Beamforming Microphones – Up to 12m pickup with AI noise reduction, echo cancellation, and sound source localization
• 2 × 15W Stereo Speakers – 30W total premium high-fidelity audio output
• Dual-System Ethernet – A single LAN connection can provide network access to both Android and Windows OPS environments
• Optional OPS Support – Supports compatible OPS computer modules for a complete Windows operating environment
• Eye Care Technology – Low Blue Light, Flicker-Free operation, and Adaptive Brightness

Display Performance

• Display Size: 100"
• Display Technology: IPS D-LED LCD
• Native Resolution: 3840 × 2160 (4K UHD)
• Aspect Ratio: 16:9
• Brightness: 350 cd/m²
• Contrast Ratio: 1200:1
• Viewing Angle: 178° Horizontal / 178° Vertical
• Refresh Rate: 60Hz
• Display Colors: 1.07 Billion Colors
• Backlight Lifetime: Up to 50,000 Hours
• Front Glass: 7H Full-Bonded Anti-Glare Tempered Glass
• Eye Protection: Low Blue Light, Flicker-Free & Adaptive Brightness

Advanced Touch Technology

• Touch Technology: High-Precision Infrared Touch
• Simultaneous Touch Points: 40+ Points
• Touch Accuracy: ±1 mm
• Response Time: ≤8 ms
• Touch Resolution: 32767 × 32767
• Writing Method: Finger, Passive Stylus or Opaque Object ≥2.5mm
• Palm Rejection: Supported
• Driver Support: Driver-Free Operation
• Operating System Support: Android, Windows, macOS & Linux

Android System & Performance

• Operating System: Android 14
• Processor: V100 Octa-Core Cortex-A55
• CPU Frequency: Up to 1.20GHz
• Graphics: ARM® Mali-G52 MP2 GPU
• RAM: 8GB
• Internal Storage: 128GB Flash Storage

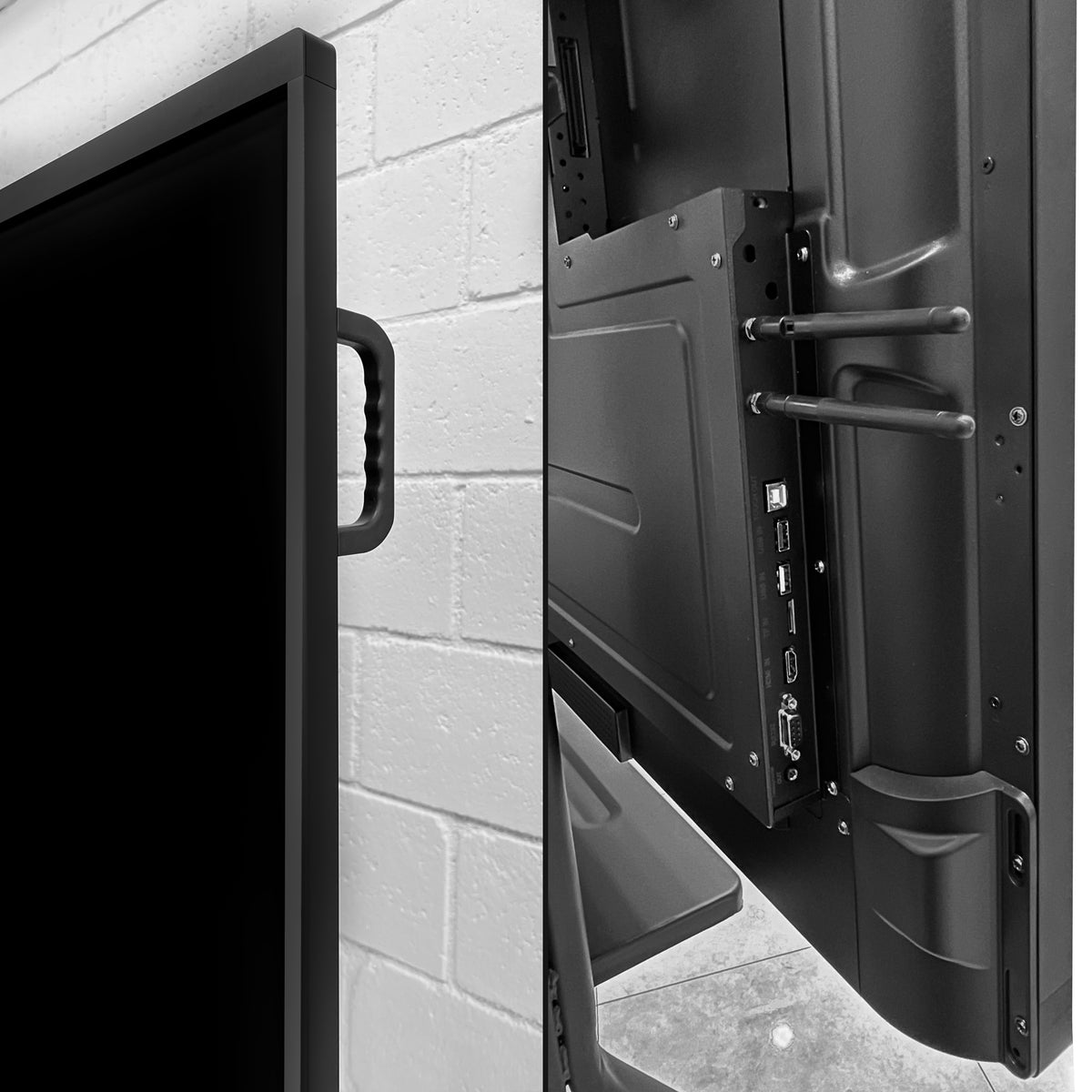

• OPS: Compatible with Optional OPS Computer Module

Camera, Microphone & Audio

• Camera: Integrated 48MP AI Camera
• Camera Viewing Angle: 120° Ultra-Wide
• Focus: Fixed Focus
• Light Compensation: Supported
• Microphones: 8-Array Beamforming Microphones
• Microphone Pickup Distance: Up to 12m
• Audio Processing: Echo Cancellation, AI Noise Reduction & Sound Source Localization
• Speakers: 2 × 15W Premium High-Fidelity Stereo Speakers
• Total Speaker Output: 30W

Fingerprint Security

• Fingerprint Sensor: Integrated Front-Mounted Fingerprint Module
• Authentication: One-Touch Fingerprint Recognition
• Security: Secure User Authentication
• System Support: Android & Windows Authentication

Connectivity

• USB Type-C – Video, audio, touch, and data transfer
• USB 3.0 – High-speed USB connectivity
• USB 2.0 – Standard USB device connectivity
• USB Touch – Touch control for external computers
• HDMI 2.0 Inputs
• HDMI Output
• VGA Input
• VGA Audio Input
• TF / microSD Card Slot
• RJ45 Gigabit Ethernet
• RS-232 – Remote management and control
• YPbPr Component Input
• Composite AV Input & Output
• Coaxial Digital Audio (SPDIF)
• 3.5mm Audio Output
• 3.5mm Microphone Input
• Wi-Fi & Bluetooth

Dimensions & Power

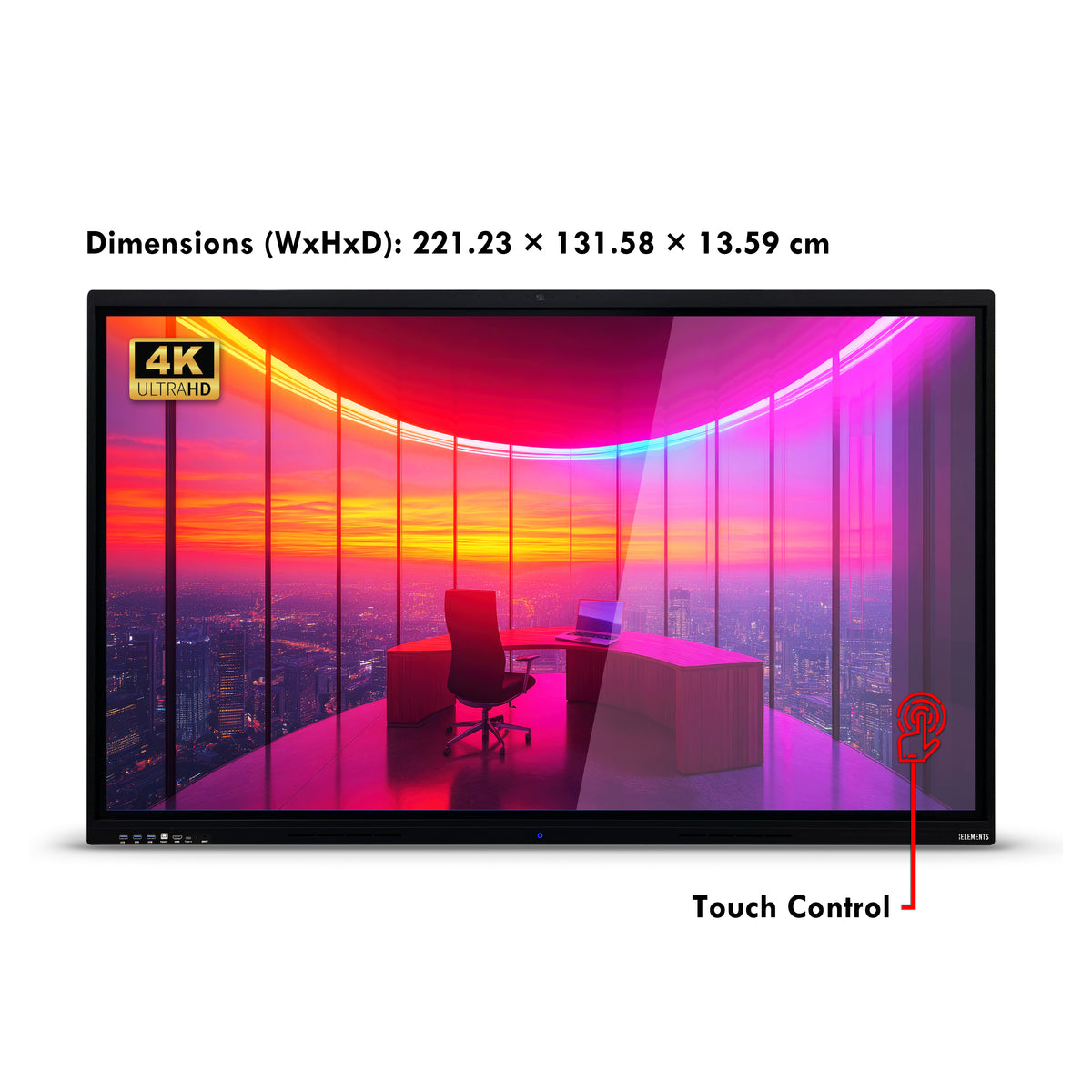

• Product Dimensions (W × H × D): 221.2 × 131.6 × 10.6 cm
• Net Weight: 102 kg
• Gross Weight: 110 kg
• Frame Material: Premium Aluminum Alloy
• Power Consumption: ≤500W without optional OPS module
• Standby Power: ≤1.5W
• Power Supply: AC 110–240V ~ 50/60Hz

Official KB ELEMENTS Warranty

✔ 3-Year Full Warranty – Backed by KB EuroTrade for trusted after-sales support, technical assistance, and long-term peace of mind.

Terms & Conditions apply

A professional large-format interactive experience — combining an expansive 100" 4K display, advanced 40+ point touch technology, Android 14 performance, fingerprint security, AI-powered video collaboration, and comprehensive connectivity for modern education and business environments.
